RTP Pipes
BKA’s RTP pipes are engineered with a multi-layer structure, designed for pressure resistance, chemical compatibility, and durability in various fluid transport applications. We offer customizable solutions with different liners, reinforcement types, and structural bonds.
Key Features:
- Multi-layer composite structure for tailored performance.
- Available in various reinforcement types (Steel Cord, Fiber Prepreg, Polyester).
- Diameters (DN): 50mm – 500mm.
- Pressure: Up to 32 MPa (series dependent).

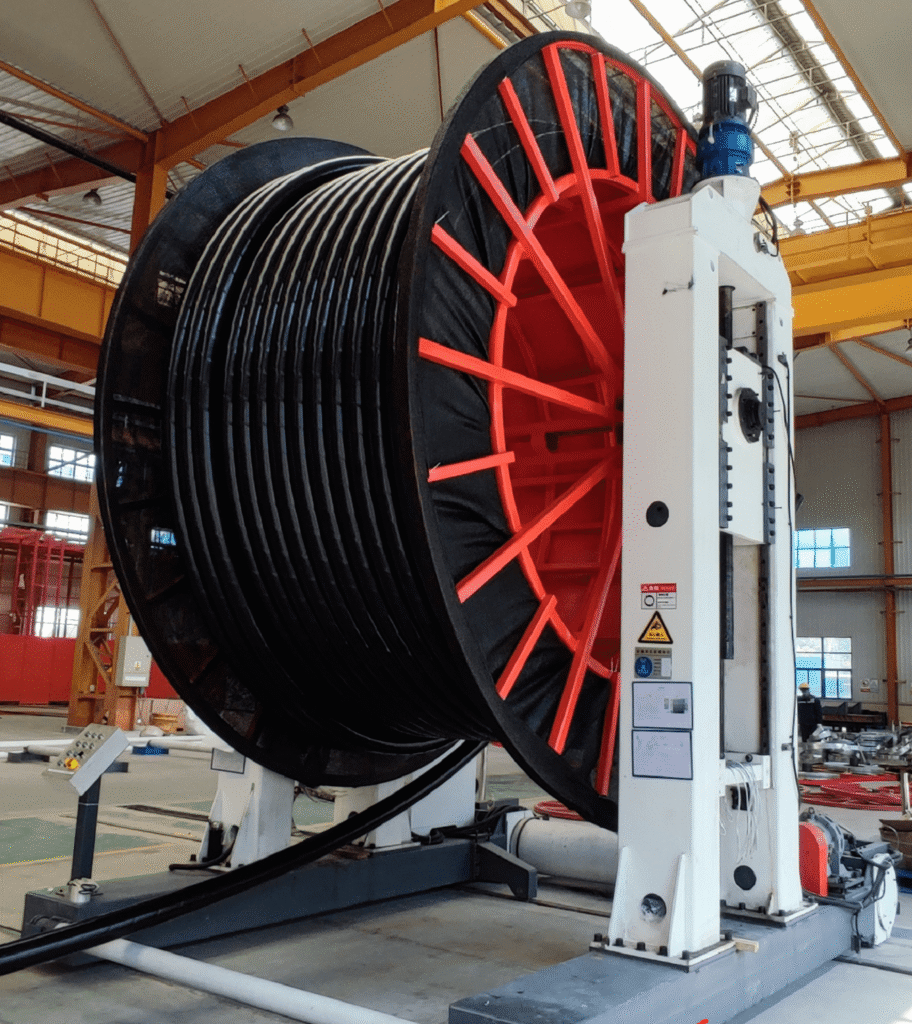

- Long continuous lengths for efficient installation.
- High corrosion and chemical resistance.
BKA offers two main types of RTP structures:
Bonded RTP: All layers are fused together forming a solid wall structure. This ensures high structural integrity, excellent resistance to gas permeation, and durability under high pressure and temperature.
Disbonded RTP: Composed of independent layers, suitable for moderate conditions and lower pressure environments.
We provide custom design and engineering based on working conditions, transported medium, and required specifications. Materials and joint types are selected based on environmental and operational needs.
Product Variants Include:
- Disbonded RTP for single well collection
- Steel-reinforced bonded RTP for shallow seas and lakes
- Aramid-reinforced RTP for high-temperature use
- RTP for gas (shale, hydrogen blends, pure hydrogen)
- Mineral fiber-reinforced PE pipe for underground coal mines
- Heat-resistant RTP for geothermal and heating lines
Lining Layer Material Comparison
| Performance / Type | PE100 | PE-RT (XRT70) | PEX (Lianqiao S1) | UHMW-PE (Yanshan Petrochemical 2.5M) | PA11/12 | POK | PVDF (90165) |
|---|---|---|---|---|---|---|---|
| Density Kg/m³ | 0.94-0.96 | 0.937 | 0.94-0.95 | 0.96 | 1.015 | 1.26 | 1.86 |
| Tensile modulus MPa | 1200 | 570-650 | 960 | 820 | 450 | 1100 | 1300 |
| Yield strength MPa | 19-28 | 19 | 27 | 22 | 27 | 30 | 35 |
| Break elongation rate % | 500-700 | 300-400 | 300-400 | 200-350 | 350 | 350 | 150-300 |
| Vica softening point (B50)°C | 70-75 | 69-73 | 78-85 | 85-90 | 95 | 120 | 153 |
| Fusion point °C | 131 | 130 | 180 | 242 | 171 | 170 | 230 |
| Design Temp. °C | 70 | 75 | 80 | 80 |
90
(injection alcohol)
|
95 | 110 |
Reinforcement Layer Comparison
| Performance / Type | Polyester fabre prepreg tape | Glass fabre prepreg tape | Aramid fabre prepreg tape | Polyester twist industrial filament | Steel cord wire tape |
|---|---|---|---|---|---|
| Density g/cm³ | 1.37 | 1.54 | 1.45 | 1.37 | 3.03 |
| Tensile strength MPa | 650 | 820 | 2900-3400 | 690 | 2180 |
| Modulus of elasticity GPa | 9.79 | 30 | 70-140 | 10.7 | 110 |
| Break elongaton rate % | 14~17 | 2.9 | 2.4 | 12~15 | 13 |
| Design Temp. °C | 85 | 80 | 110 | 75 | 90 |
RTP pipes are engineered to perform reliably across a wide range of fluid transport applications in different industrial environments.
Conventional Oil and Gas Field Gathering Pipeline
Acid Oil and Gas Field Gathering Pipeline
High Pressure Water Injection Pipeline
Sewage Conveying Pipeline
Water Supply Pipeline
Hydraulic Fracturing Flowback Liquid Pipeline
Coal Bed Gas Conveying Pipeline
Chemical Pipeline
Development in Structure and Application:
Structure Development:
Small Diameter: From Specific Lengths to Continuous.
Large Diameter: From Low Pressure to High Pressure.
Application Development:
From Water to Oil & Gas Systems.
From Surface to Well Depths.
From Onshore to Offshore.
BKA Industrial Group’s manufacturing products comply with the following standards:
API 15S
API 17J
IPS-G-PI-600
ASTM D3350
ISO 11672
ASTM D885
ASTM D2256
Obtaining laboratory accreditation certificate based on NACI 17025.
BKA offers two main types of RTP structures:
Bonded RTP: All layers are fused together forming a solid wall structure. This ensures high structural integrity, excellent resistance to gas permeation, and durability under high pressure and temperature.
Disbonded RTP: Composed of independent layers, suitable for moderate conditions and lower pressure environments.
We provide custom design and engineering based on working conditions, transported medium, and required specifications. Materials and joint types are selected based on environmental and operational needs.
Product Variants Include:
- Disbonded RTP for single well collection
- Steel-reinforced bonded RTP for shallow seas and lakes
- Aramid-reinforced RTP for high-temperature use
- RTP for gas (shale, hydrogen blends, pure hydrogen)
- Mineral fiber-reinforced PE pipe for underground coal mines
- Heat-resistant RTP for geothermal and heating lines
RTP pipes are engineered to perform reliably across a wide range of fluid transport applications in different industrial environments.
Conventional Oil and Gas Field Gathering Pipeline
Acid Oil and Gas Field Gathering Pipeline
High Pressure Water Injection Pipeline
Sewage Conveying Pipeline
Water Supply Pipeline
Hydraulic Fracturing Flowback Liquid Pipeline
Coal Bed Gas Conveying Pipeline
Chemical Pipeline
Development in Structure and Application:
Structure Development:
Small Diameter: From Specific Lengths to Continuous.
Large Diameter: From Low Pressure to High Pressure.
Application Development:
From Water to Oil & Gas Systems.
From Surface to Well Depths.
From Onshore to Offshore.
BKA Industrial Group’s manufacturing products comply with the following standards:
API 15S
API 17J
IPS-G-PI-600
ASTM D3350
ISO 11672
ASTM D885
ASTM D2256
Obtaining laboratory accreditation certificate based on NACI 17025.
