Fitting / Jointing System
BKA GRP Industries developed FLOW BOND® pipe and fitting systems to perform under the most corrosive and demanding conditions relating to the offshore environment.
The FLOXY® series default joining system is tapered bell & spigot and has tapers with a nominal angle of 2.1/2 or 1.3/4 degrees depending on the pipe nominal diameter. It is bonded by an amine-cured epoxy adhesive. Alternative joints including straight bell & spigot, coupling, nipples, and flanges (on demand).
Specification:
Type: GRE, GRV, GRP Integrated connections
Diameter: 1″ upto 48″ or 25 to 1200 mm
Pressure: 1 to 240 bar
Stiffness: 1500 to 150,000 Pascal
The FLOXY® series default joining system is tapered bell & spigot and has tapers with a nominal angle of 2.1/2 or 1.3/4 degrees depending on the pipe nominal diameter. It is bonded by an amine-cured epoxy adhesive. Alternative joints including straight bell & spigot, coupling, nipples, and flanges (on demand).
FLOW BOND® pipefitting series is one of the most advanced products of BKA CO. It is manufactured according to the highest standards in line with international industrial specifications and demands.

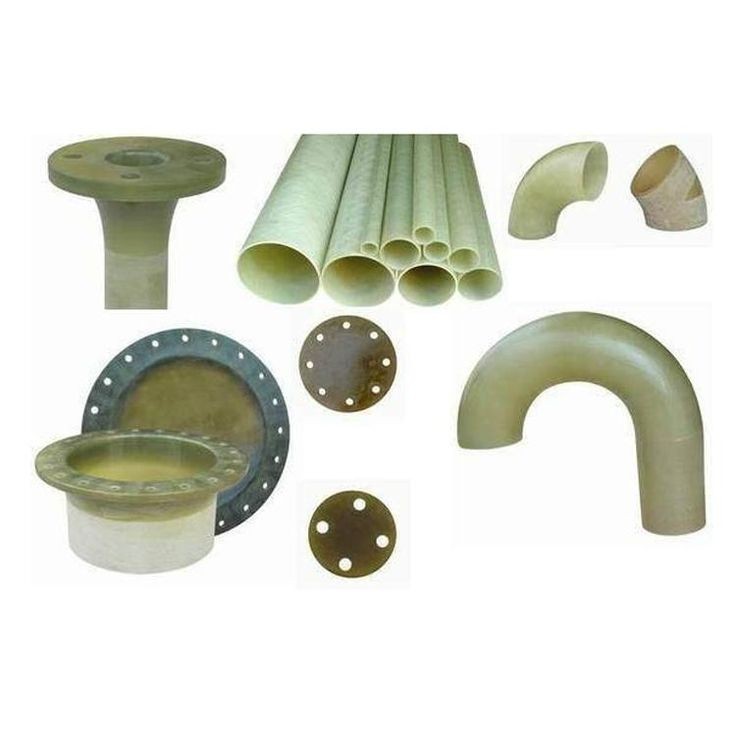

FLOXY Series fitting includes 45°, 22. 1/2 °, 90° elbows, equal tees, reducing tee, concentric reducer, and eccentric reducer with adhesive-bonded bell.
The same process, materials, and methods as the pipe system manufacturing are applied to the production of fittings. The thickness of the fitting liner is equal to or greater than the pipe itself.
Type: GRE, GRV, GRP Integrated connections
Diameter: 1″ upto 48″ or 25 to 1200 mm
Pressure: 1 to 240 bar
Stiffness: 1500 to 150,000 Pascal
FLOW BOND® pipeline fittings are delivered according to the following international standards:
• Standard for fiberglass pipe design AWWA C950-M45
• Standard for fiberglass pipe design used in oil and gas industry ISO146992
• High-pressure pipe and fitting specifications API 15HR
• Polyester pipe and fitting specification DIN 16965
• Standard for flange drilling ASME & ANSI & DIN
